H 형강 규격 및 중량표 (H Beam standard)

목차

    자주 사용되는 H 형강 규격 및 중량표 (H Beam standard) 공유드립니다. 설계할 때 참고하시기 바랍니다.

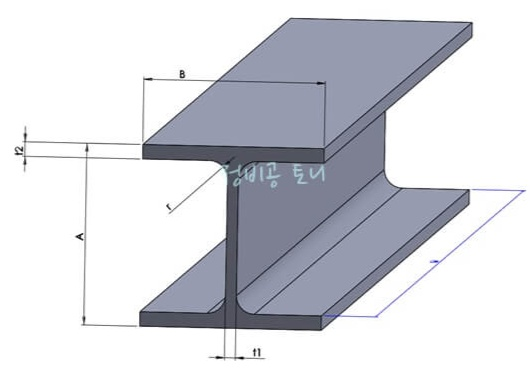

    H형강-H-Beam
    H형강-H-Beam

    H 형강 규격 및 중량표 (H Beam standard) 테이블

    규격 (치수)

    r

    단위무게 (kg/m)

    단면적 (cm2)

    단면 2차 모멘트 (cm4)

    단면 2차 반지름 (cm)

    단면 계수 (cm2)

    H × B × t1 × t2

    W

    A

    Ix

    Iy

    ix

    iy

    zx

    zy

    100 × 100 × 6 × 8

    10

    17.2

    21.9

    383

    134

    4.18

    2.47

    77

    26.7

    125 × 125 × 6.5 × 9

    10

    23.8

    30.31

    847

    293

    5.29

    3.11

    136

    47

    148 × 100 × 6 × 9

    11

    21.1

    26.84

    1,020

    151

    6.17

    2.37

    138

    30.1

    150 × 75 × 5 × 7

    8

    14

    17.85

    666

    50

    6.11

    1.66

    89

    13.2

    150 × 150 × 7 ×10

    11

    31.5

    40.14

    1,640

    563

    6.39

    3.75

    219

    75.1

    200 × 100 × 5.5 × 8

    11

    21.3

    27.16

    1,840

    134

    8.24

    2.22

    184

    26.8

    200 × 200 × 8 × 12

    13

    49.9

    63.53

    4,720

    1,600

    8.62

    5.02

    472

    160

    200 × 204 ×12 × 12

    13

    56.2

    71.53

    4,980

    1,700

    8.35

    4.88

    498

    167

    244 × 175 × 7 × 11

    16

    44.1

    56.24

    6,120

    984

    10.4

    4.18

    502

    113

    250 × 250 × 9 × 14

    16

    72.4

    92.18

    10,800

    3,650

    10.8

    6.29

    867

    292

    298 × 149 × 5.5 × 8

    13

    32

    40.8

    6,320

    442

    12.4

    3.29

    424

    59.3

    300 × 150 × 6.5 × 9

    13

    36.7

    46.78

    7,210

    508

    12.4

    3.29

    484

    67.7

    294 × 200 × 8 × 12

    18

    56.8

    72.38

    11,300

    1,600

    12.5

    4.71

    771

    160

    298 × 201 × 9 × 14

    18

    65.4

    83.36

    13,300

    1,900

    12.6

    4.77

    893

    189

    300 × 300 × 10 × 15

    18

    94

    119.8

    20,400

    6,750

    13.1

    7.51

    1,360

    450

    300 × 305 × 15 × 15

    18

    106

    134.8

    21,500

    7,100

    12.6

    7026

    1,440

    446

    350 × 175 × 7 × 11

    14

    49.6

    63.14

    13,600

    984

    14.7

    3.95

    775

    112

    340 × 250 × 9 × 14

    20

    79.7

    101

    21,700

    3,650

    14.6

    6

    1,280

    292

    350 × 350 × 12 × 19

    20

    137

    173.9

    40,300

    13,600

    15.2

    8.84

    2,300

    776

    396 × 199 × 7 × 11

    16

    56.6

    72.16

    20,000

    1,450

    16.7

    4.48

    1,010

    145

    400 × 200 × 8 × 13

    16

    66

    84.12

    23,700

    1,740

    16.8

    4.54

    1,190

    174

    390 × 300 × 10 × 16

    22

    107

    136

    38,700

    7,210

    16.9

    7.28

    1,980

    481

    400 × 400 × 13 × 21

    22

    172

    218.7

    66,600

    22,400

    17.5

    10.1

    3,330

    1,120

    428 × 407 × 20 × 35

    22

    283

    360.7

    119,000

    39,400

    18.2

    10.4

    5,570

    1,930

    450 × 200 × 9 × 14

    18

    76

    96.76

    3,350

    1,870

    18.6

    4.4

    1,490

    187

    440 × 300 × 11 × 18

    25

    124

    157.4

    56,100

    8,110

    18.9

    7.18

    2,550

    541

    496 × 199 × 9 × 14

    20

    79.5

    101

    41,900

    1,840

    20.3

    4.27

    1,690

    185

    500 × 200 × 10 × 16

    20

    89.6

    114.2

    47,800

    2,140

    20.5

    4.33

    1,910

    214

    482 × 300 × 11 × 15

    26

    114

    145.5

    60,400

    6,760

    20.4

    6.82

    2,500

    451

    488 × 300 × 11 × 18

    26

    128

    163.5

    71,000

    8,110

    20.8

    7.04

    2,910

    541

    600 × 200 × 11 × 17

    22

    106

    134.4

    77,600

    2,280

    24

    4.12

    2,590

    228

    588 × 300 × 12 × 20

    28

    151

    192.5

    111,800

    9,020

    24.8

    6.85

    4,020

    601

    594 × 302 × 14 × 23

    28

    175

    222.4

    137,000

    10,600

    24.9

    6.9

    4,620

    701

    692 × 300 × 13 × 20

    28

    166

    211.5

    172,000

    9,020

    28.6

    6.53

    4,980

    902

    700 × 300 × 13 × 24

    28

    185

    235.5

    201,000

    10,800

    29.3

    6.78

    5,760

    722

    800 × 300 × 14 × 26

    28

    210

    267.4

    292,000

    11,700

    33

    6.62

    7,290

    782

    808 × 302 × 16 × 30

    28

    241

    307.6

    339,000

    13,800

    33.2

    6.7

    8,400

    915

    900 × 300 × 16 × 28

    28

    243

    309.8

    411,000

    12,600

    36.4

    6.39

    9,140

    843
