자주 사용되는 H 형강 규격 및 중량표 (H Beam standard) 공유드립니다. 설계할 때 참고하시기 바랍니다.

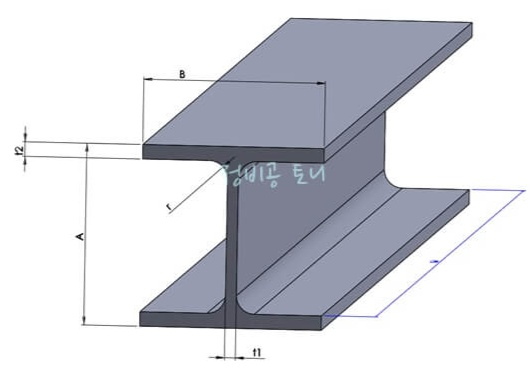

H 형강 규격 및 중량표 (H Beam standard) 테이블
|
규격 (치수) |
r |
단위무게 (kg/m) |
단면적 (cm2) |
단면 2차 모멘트 (cm4) |
단면 2차 반지름 (cm) |
단면 계수 (cm2) |
|||
|
H × B × t1 × t2 |
W |
A |
Ix |
Iy |
ix |
iy |
zx |
zy |
|
|
100 × 100 × 6 × 8 |
10 |
17.2 |
21.9 |
383 |
134 |
4.18 |
2.47 |
77 |
26.7 |
|
125 × 125 × 6.5 × 9 |
10 |
23.8 |
30.31 |
847 |
293 |
5.29 |
3.11 |
136 |
47 |
|
148 × 100 × 6 × 9 |
11 |
21.1 |
26.84 |
1,020 |
151 |
6.17 |
2.37 |
138 |
30.1 |
|
150 × 75 × 5 × 7 |
8 |
14 |
17.85 |
666 |
50 |
6.11 |
1.66 |
89 |
13.2 |
|
150 × 150 × 7 ×10 |
11 |
31.5 |
40.14 |
1,640 |
563 |
6.39 |
3.75 |
219 |
75.1 |
|
200 × 100 × 5.5 × 8 |
11 |
21.3 |
27.16 |
1,840 |
134 |
8.24 |
2.22 |
184 |
26.8 |
|
200 × 200 × 8 × 12 |
13 |
49.9 |
63.53 |
4,720 |
1,600 |
8.62 |
5.02 |
472 |
160 |
|
200 × 204 ×12 × 12 |
13 |
56.2 |
71.53 |
4,980 |
1,700 |
8.35 |
4.88 |
498 |
167 |
|
244 × 175 × 7 × 11 |
16 |
44.1 |
56.24 |
6,120 |
984 |
10.4 |
4.18 |
502 |
113 |
|
250 × 250 × 9 × 14 |
16 |
72.4 |
92.18 |
10,800 |
3,650 |
10.8 |
6.29 |
867 |
292 |
|
298 × 149 × 5.5 × 8 |
13 |
32 |
40.8 |
6,320 |
442 |
12.4 |
3.29 |
424 |
59.3 |
|
300 × 150 × 6.5 × 9 |
13 |
36.7 |
46.78 |
7,210 |
508 |
12.4 |
3.29 |
484 |
67.7 |
|
294 × 200 × 8 × 12 |
18 |
56.8 |
72.38 |
11,300 |
1,600 |
12.5 |
4.71 |
771 |
160 |
|
298 × 201 × 9 × 14 |
18 |
65.4 |
83.36 |
13,300 |
1,900 |
12.6 |
4.77 |
893 |
189 |
|
300 × 300 × 10 × 15 |
18 |
94 |
119.8 |
20,400 |
6,750 |
13.1 |
7.51 |
1,360 |
450 |
|
300 × 305 × 15 × 15 |
18 |
106 |
134.8 |
21,500 |
7,100 |
12.6 |
7026 |
1,440 |
446 |
|
350 × 175 × 7 × 11 |
14 |
49.6 |
63.14 |
13,600 |
984 |
14.7 |
3.95 |
775 |
112 |
|
340 × 250 × 9 × 14 |
20 |
79.7 |
101 |
21,700 |
3,650 |
14.6 |
6 |
1,280 |
292 |
|
350 × 350 × 12 × 19 |
20 |
137 |
173.9 |
40,300 |
13,600 |
15.2 |
8.84 |
2,300 |
776 |
|
396 × 199 × 7 × 11 |
16 |
56.6 |
72.16 |
20,000 |
1,450 |
16.7 |
4.48 |
1,010 |
145 |
|
400 × 200 × 8 × 13 |
16 |
66 |
84.12 |
23,700 |
1,740 |
16.8 |
4.54 |
1,190 |
174 |
|
390 × 300 × 10 × 16 |
22 |
107 |
136 |
38,700 |
7,210 |
16.9 |
7.28 |
1,980 |
481 |
|
400 × 400 × 13 × 21 |
22 |
172 |
218.7 |
66,600 |
22,400 |
17.5 |
10.1 |
3,330 |
1,120 |
|
428 × 407 × 20 × 35 |
22 |
283 |
360.7 |
119,000 |
39,400 |
18.2 |
10.4 |
5,570 |
1,930 |
|
450 × 200 × 9 × 14 |
18 |
76 |
96.76 |
3,350 |
1,870 |
18.6 |
4.4 |
1,490 |
187 |
|
440 × 300 × 11 × 18 |
25 |
124 |
157.4 |
56,100 |
8,110 |
18.9 |
7.18 |
2,550 |
541 |
|
496 × 199 × 9 × 14 |
20 |
79.5 |
101 |
41,900 |
1,840 |
20.3 |
4.27 |
1,690 |
185 |
|
500 × 200 × 10 × 16 |
20 |
89.6 |
114.2 |
47,800 |
2,140 |
20.5 |
4.33 |
1,910 |
214 |
|
482 × 300 × 11 × 15 |
26 |
114 |
145.5 |
60,400 |
6,760 |
20.4 |
6.82 |
2,500 |
451 |
|
488 × 300 × 11 × 18 |
26 |
128 |
163.5 |
71,000 |
8,110 |
20.8 |
7.04 |
2,910 |
541 |
|
600 × 200 × 11 × 17 |
22 |
106 |
134.4 |
77,600 |
2,280 |
24 |
4.12 |
2,590 |
228 |
|
588 × 300 × 12 × 20 |
28 |
151 |
192.5 |
111,800 |
9,020 |
24.8 |
6.85 |
4,020 |
601 |
|
594 × 302 × 14 × 23 |
28 |
175 |
222.4 |
137,000 |
10,600 |
24.9 |
6.9 |
4,620 |
701 |
|
692 × 300 × 13 × 20 |
28 |
166 |
211.5 |
172,000 |
9,020 |
28.6 |
6.53 |
4,980 |
902 |
|
700 × 300 × 13 × 24 |
28 |
185 |
235.5 |
201,000 |
10,800 |
29.3 |
6.78 |
5,760 |
722 |
|
800 × 300 × 14 × 26 |
28 |
210 |
267.4 |
292,000 |
11,700 |
33 |
6.62 |
7,290 |
782 |
|
808 × 302 × 16 × 30 |
28 |
241 |
307.6 |
339,000 |
13,800 |
33.2 |
6.7 |
8,400 |
915 |
|
900 × 300 × 16 × 28 |
28 |
243 |
309.8 |
411,000 |
12,600 |
36.4 |
6.39 |
9,140 |
843 |
