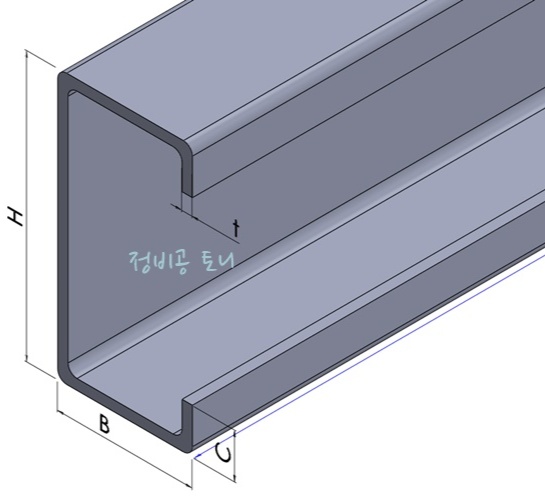

자주 사용되는 C 형강 규격 및 중량표 (C Channels standard) 공유드립니다. 설계할 때 참고하시기 바랍니다.
C 형강 규격 및 중량표 (C Channels standard) 테이블
|
단면 치수 (mm) |
단위 중량 |
단면적 |
단면 계수 |
|
|
H × B × C × t |
kg/m |
cm2 |
Zx |
Zy |
|
60 × 30 × 10 × 1.6 |
1.63 |
2.072 |
3.88 |
1.32 |
|
60 × 30 × 10 × 2.0 |
1.99 |
2.537 |
4.65 |
1.55 |
|
60 × 30 × 10 × 2.3 |
2.25 |
2.872 |
5.2 |
1.71 |
|
75 × 45 × 15 × 1.6 |
2.32 |
2.952 |
7.24 |
3.13 |
|
75 × 45 × 15 × 2.0 |
2.86 |
3.637 |
8.79 |
3.76 |
|
75 × 45 × 15 × 2.3 |
3.25 |
4.137 |
9.9 |
4.24 |
|
100 × 50 × 20 × 1.6 |
2.88 |
3.672 |
11.7 |
4.47 |
|
100 × 50 × 20 × 2.0 |
3.56 |
4.537 |
14.3 |
5.4 |
|
100 × 50 × 20 × 2.3 |
4.06 |
5.172 |
16.1 |
6.06 |
|
100 × 50 × 20 × 2.6 |
4.55 |
5.796 |
17.9 |
6.68 |
|
100 × 50 × 20 × 3.2 |
5.5 |
7.007 |
21.3 |
7.81 |
|
125 × 50 × 20 × 2.0 |
3.95 |
5.037 |
19.7 |
5.18 |
|
125 × 50 × 20 × 2.3 |
4.51 |
5.747 |
21.9 |
6.22 |
|
125 × 50 × 20 × 3.2 |
6.13 |
7.807 |
29 |
8.02 |
|
150 × 50 × 20 × 3.2 |
6.76 |
8.607 |
37.4 |
8.19 |
|
150 × 65 × 20 × 3.2 |
7.51 |
9.567 |
44.3 |
12.2 |
|
150 × 65 × 20 × 4.0 |
9.22 |
11.75 |
535 |
14.5 |
|
150 × 65 × 20 × 4.5 |
10.3 |
13.07 |
58.8 |
15.7 |
|
150 × 75 × 20 × 3.2 |
8.27 |
10.53 |
50 |
17.3 |
|
200 × 75 × 20 × 3.2 |
9.27 |
11.81 |
71.6 |
15.8 |
|
200 × 75 × 20 × 4.5 |
12.7 |
16.22 |
96.3 |
20.6 |
|
200 × 75 × 20 × 5.0 |
14 |
17.86 |
105 |
22.1 |
|
200 × 75 × 25 × 3.2 |
9.52 |
12.13 |
73.6 |
17.8 |
|
200 × 75 × 25 × 4.0 |
11.7 |
14.95 |
89.5 |
21.3 |
|
200 × 75 × 25 × 4.5 |
13.1 |
16.67 |
99 |
23.3 |
|
200 × 80 × 25 × 4.0 |
13.3 |
16.95 |
123 |
21.4 |
|
200 × 80 × 25 × 4.5 |
14.9 |
18.92 |
137 |
23.4 |
